2018-2021 for Harley Softail Sport Glide FLSB Lifters Race Series M8
2018-2021 for Harley Softail Sport Glide FLSB Lifters Race Series M8

2018-2021 for Harley Softail Sport Glide FLSB Lifters Race Series M8

FEULING OIL PUMP CORP.

$319.95

Quantity

Manufacturer: Feuling
MPN: 4017ST

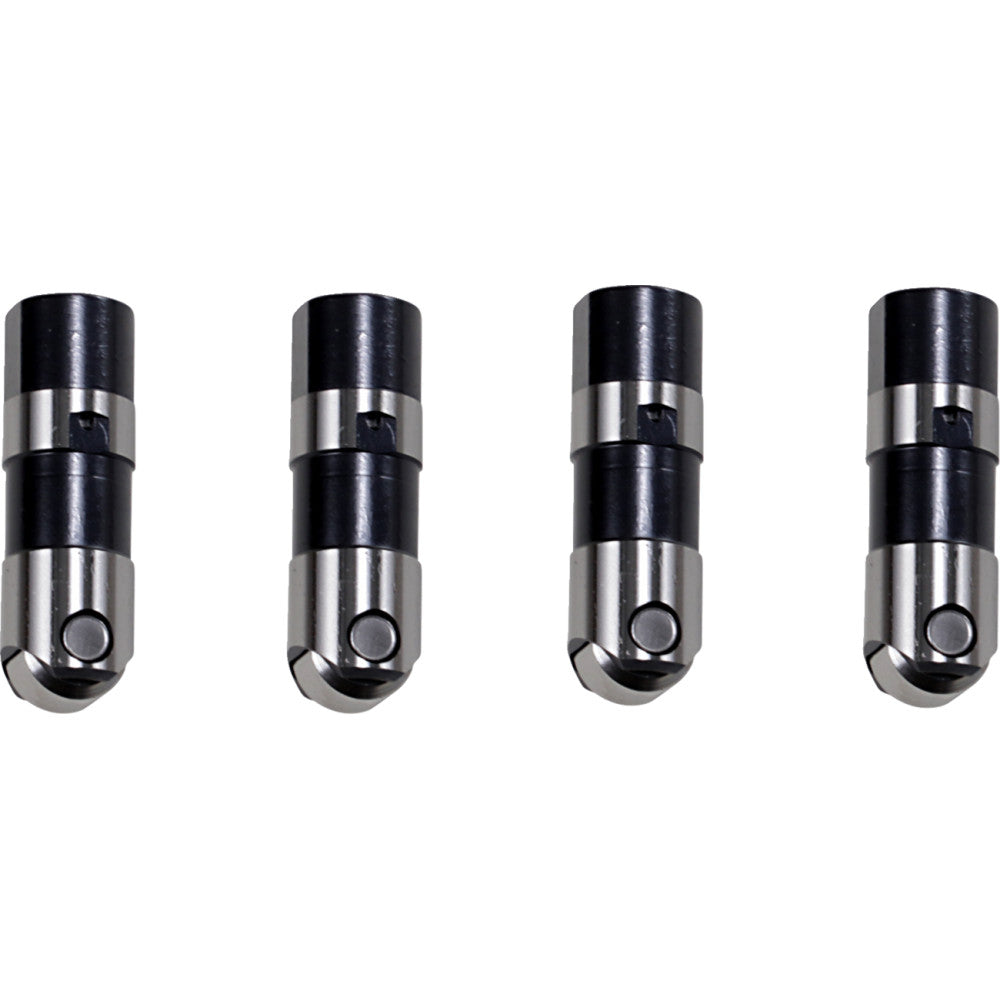

Title: Race Series Short-Travel Hydraulic Lifters
Option: 0.8420"

  • New revolutionary design with 0.115" of total travel vs. a full-travel lifter with 0.200"
  • These lifters will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine
  • Travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration in the lifter on steep, fast-action high-lift camshaft lobes
  • Short-travel lifters should be set with 0.065" - 0.070" of pre-load and with the normal engine growth from heat will put the operating lifter pre-load at or around half travel
  • Short-travel lifters are designed to limit the amount of oil needed to fill the internals of the lifter which results in less oil needed compared to a full-travel or other style short-travel lifters
  • Design drastically reduces aeration of the oil producing a fully filled lifter when the lifter rolls around to the front cam lobe ramp vs. having aerated oil and then the pushrod seat dropping when the lifter hits the front cam ramp after squeezing the aeration
  • Machined from a steel body and designed to exceed the needs of large lift camshafts and higher valve spring pressures with a slower bleed down rate
  • Precision ground needle roller bearing with high chromium steel axle for long life and minimal friction
  • Cold-forged extra-long piston, precision-ground and fitted for controlled leak-down and pump up
  • High-flow disc-style quick-reacting check valve for better reaction at higher rpm
  • Race Series® lifters maintain proper oil flow to the top end, increase engine rpm, valve-train stability, decreasing valve float promoting maximum valve lift
  • Feuling® recommends Race Series® lifters for engines running higher than 185 lb. valve spring seat pressure
  • Feuling®? recommends the use of a high-volume oil pump, which will result in quieter, better performing lifters
  • Race Series® lifters are compatible with either Feuling® HP+® or Race Series® oil pumps and are designed for use with both street and strip engines
  • Spin-Tron dyno-developed and track-proven
  • Available in standard and oversized diameters
  • Sold as a set of four
  • Made in the U.S.A.

Fitment Chart

YearMakeModelPositionNotes
2022Harley-DavidsonSoftail Low Rider ST FXLRST--
2022Harley-DavidsonStreet Glide ST FLHXST--
2022Harley-DavidsonCVO Road Glide Limited--
2022Harley-DavidsonRoad Glide ST FLTRXST--
2022Harley-DavidsonSoftail Low Rider El Diablo FXRST--
2021Harley-DavidsonElectra Glide Revival--
2020-2022Harley-DavidsonSoftail Standard FXST--
2020-2022Harley-DavidsonCVO Tri Glide FLHTCUTGSE--
2020-2022Harley-DavidsonSoftail Low Rider S FXLRS--
2020-2022Harley-DavidsonRoad Glide Limited FLTRK--
2019-2022Harley-DavidsonElectra Glide Standard EFI FLHTI--
2019-2020Harley-DavidsonFXDR 114--
2018-2022Harley-DavidsonSoftail Street Bob FXBB--
2018-2022Harley-DavidsonSoftail Fat Bob 114 FXFBS--
2018-2022Harley-DavidsonSoftail Fat Boy 114 FLFBS--
2018-2022Harley-DavidsonSoftail Heritage Classic 114 FLHCS--
2018-2022Harley-DavidsonCVO Road Glide Custom FLTRXSE--
2018-2021Harley-DavidsonSoftail Heritage Classic FLHC--
2018-2021Harley-DavidsonSoftail Slim FLSL--
2018-2021Harley-DavidsonSoftail Sport Glide FLSB--
2018-2020Harley-DavidsonSoftail Breakout 114 FXBRS--
2018-2020Harley-DavidsonSoftail Low Rider FXLR--
2018-2020Harley-DavidsonSoftail Deluxe FLDE--
2018-2019Harley-DavidsonSoftail Fat Bob FXFB--
2018-2019Harley-DavidsonSoftail Breakout FXBR--
2018-2019Harley-DavidsonSoftail Fat Boy FLFB--
2017-2022Harley-DavidsonRoad King Special FLHRXS--
2017-2022Harley-DavidsonElectra Glide Ultra Limited FLHTK--
2017-2022Harley-DavidsonRoad Glide Special FLTRXS--
2017-2022Harley-DavidsonFreewheeler FLRT--
2017-2022Harley-DavidsonStreet Glide Special FLHXS--
2017-2022Harley-DavidsonTri Glide Ultra Classic FLHTCUTG--
2017-2022Harley-DavidsonRoad King EFI FLHR--
2017-2022Harley-DavidsonRoad Glide Custom FLTRX--
2017-2022Harley-DavidsonStreet Glide EFI FLHX--
2017-2022Harley-DavidsonCVO Street Glide FLHXSE--
2017-2021Harley-DavidsonCVO Electra Glide Ultra Limited FLHTKSE--
2017-2021Harley-DavidsonElectra Glide Police FLHTPI--
2017-2019Harley-DavidsonElectra Glide Ultra Limited Low FLHTKL--
2017-2019Harley-DavidsonRoad Glide Ultra FLTRU--
2017-2019Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI--
