FEULING OIL PUMP CORP.

$899.95

Quantity

Manufacturer: Feuling
MPN: 7197
Title: Race Series Oil Pump/Camplate Kits
Option: Oil Cooled

  • Increase oil pressure, oil volume, engine oil flow and return oil scavenging
  • Quieter and smoother engine operation
  • 15-25 degree cooler engine temperatures
  • 15-30 degree cooler oil temperatures
  • 10-30 more PSI of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Test results show 2 horsepower gain and 2 ft/lbs of torque gain to the rear wheel on M-Eight
  • Feuling test results show as much as 50% reduction of engine sump oil level

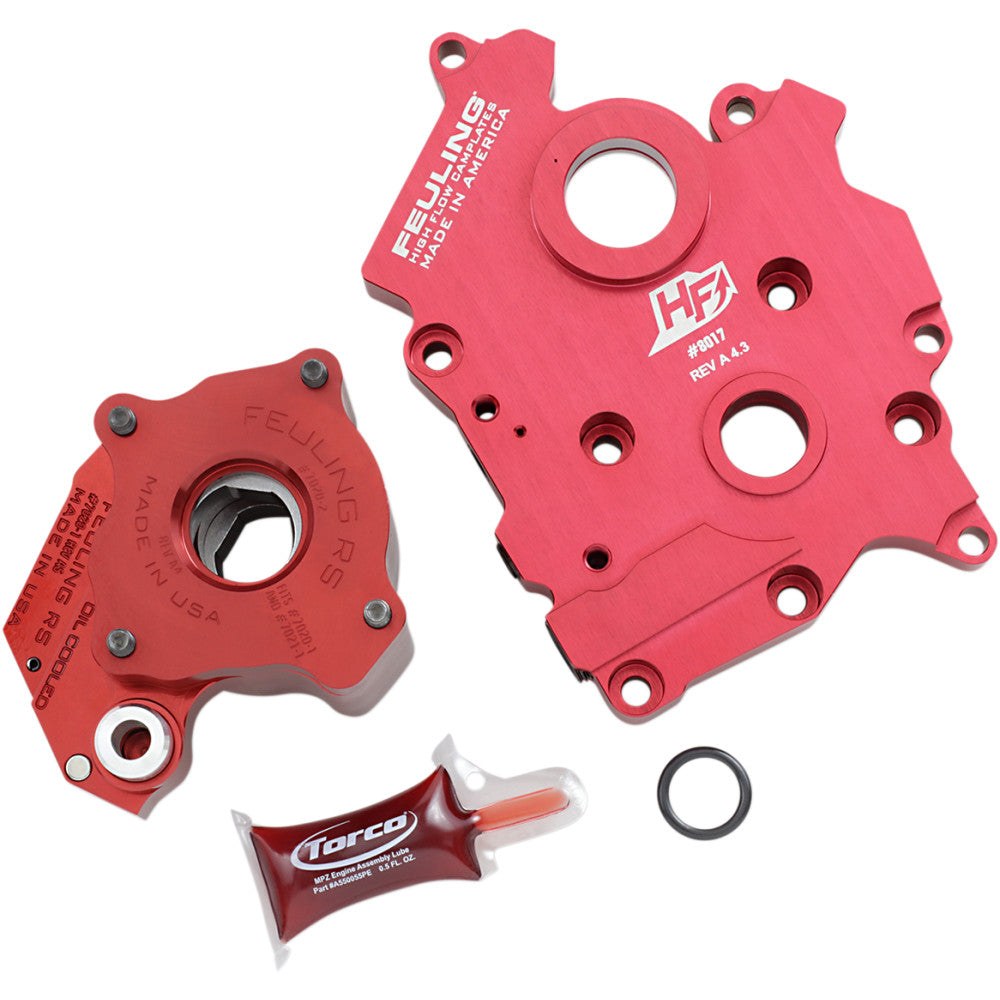

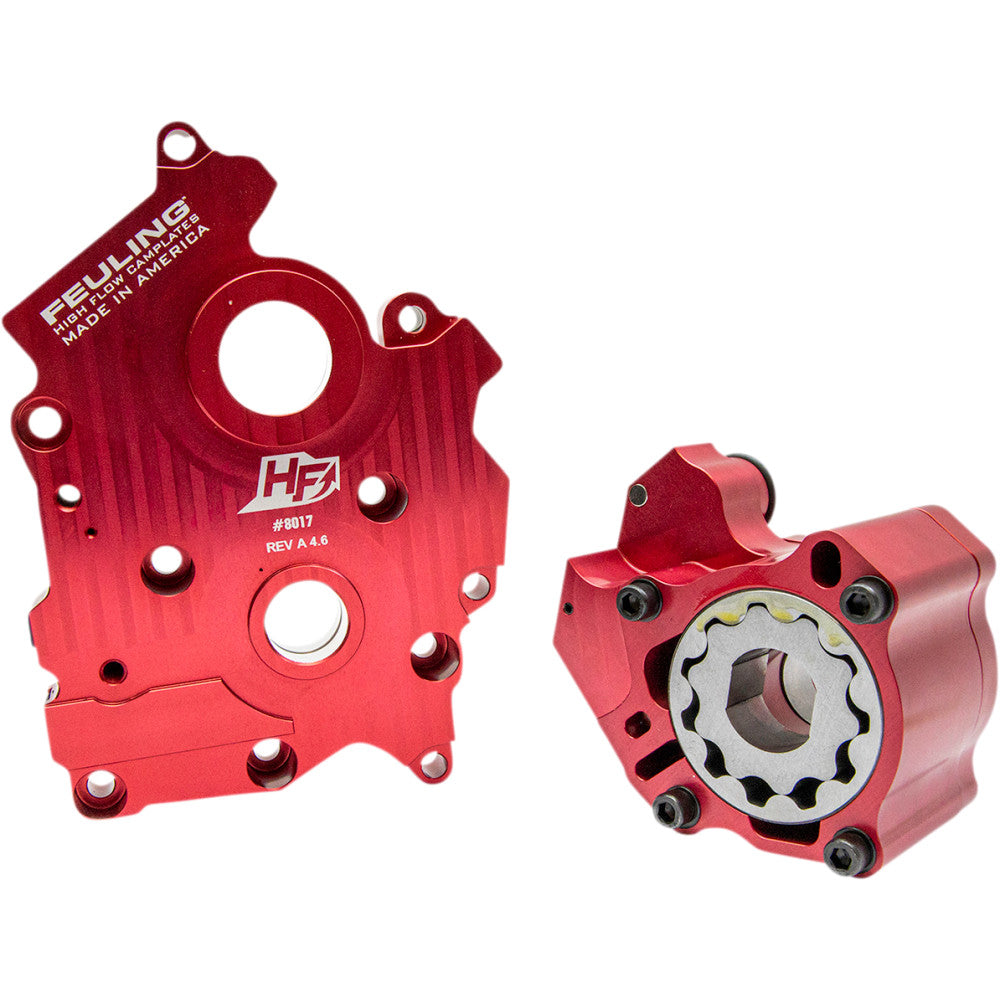

  • Includes a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature (Race Series® M-Eight oil pumps have deeper scavenge kidneys when compared to the HP+ kidneys for increased scavenge volume)
  • Also, includes Feuling® ?High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or Feuling OE+ camplates
  • Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
  • Oil pumps are bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop-off at 55-60 psi
  • Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
  • Feuling oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
  • Optional Camplate/oil pump fastener kit PART #2401-0993 available separately; see page 741 of the 2019 Drag Specialties FatBook
  • PART #0925-1256 has 27% more pressure and scavenge gear volume over stock, 42% more scavenge volume through port sizing, matched passages and holes to the engine case and 68% more oil volume to the crankshaft and connecting rod bearing
  • PART #0932-0231 has 30% more pressure gear volume over stock, 53% more scavenge gear volume over stock and 42% more scavenge volume with port sizing, matched passages and holes to the engine case

Fitment Chart

YearMakeModelPositionNotes
2020Harley-DavidsonCVO Tri Glide FLHTCUTGSE--
2020Harley-DavidsonSoftail Low Rider S FXLRS--
2020Harley-DavidsonRoad Glide Limited FLTRK--
2020Harley-DavidsonSoftail Standard FXST--
2019-2020Harley-DavidsonFXDR 114--
2019-2020Harley-DavidsonElectra Glide Standard EFI FLHTI--
2018-2020Harley-DavidsonSoftail Breakout 114 FXBRS--
2018-2020Harley-DavidsonSoftail Fat Boy 114 FLFBS--
2018-2020Harley-DavidsonSoftail Heritage Classic 114 FLHCS--
2018-2020Harley-DavidsonSoftail Low Rider FXLR--
2018-2020Harley-DavidsonSoftail Slim FLSL--
2018-2020Harley-DavidsonSoftail Fat Bob 114 FXFBS--
2018-2020Harley-DavidsonSoftail Heritage Classic FLHC--
2018-2020Harley-DavidsonSoftail Street Bob FXBB--
2018-2020Harley-DavidsonSoftail Deluxe FLDE--
2018-2020Harley-DavidsonSoftail Sport Glide FLSB--
2018-2020Harley-DavidsonCVO Road Glide Custom FLTRXSE--
2018-2019Harley-DavidsonSoftail Breakout FXBR--
2018-2019Harley-DavidsonSoftail Fat Bob FXFB--
2018-2019Harley-DavidsonSoftail Fat Boy FLFB--
2017-2020Harley-DavidsonCVO Electra Glide Ultra Limited FLHTKSE--
2017-2020Harley-DavidsonRoad King Special FLHRXS--
2017-2020Harley-DavidsonTri Glide Ultra Classic FLHTCUTG--
2017-2020Harley-DavidsonElectra Glide Police FLHTPI--
2017-2020Harley-DavidsonElectra Glide Ultra Limited FLHTK--
2017-2020Harley-DavidsonFreewheeler FLRT--
2017-2020Harley-DavidsonRoad Glide Special FLTRXS--
2017-2020Harley-DavidsonStreet Glide Special FLHXS--
2017-2020Harley-DavidsonStreet Glide EFI FLHX--
2017-2020Harley-DavidsonRoad King EFI FLHR--
2017-2020Harley-DavidsonRoad Glide Custom FLTRX--
2017-2020Harley-DavidsonCVO Street Glide FLHXSE--
2017-2019Harley-DavidsonElectra Glide Ultra Limited Low FLHTKL--
2017-2019Harley-DavidsonRoad Glide Ultra FLTRU--
2017-2019Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI--
