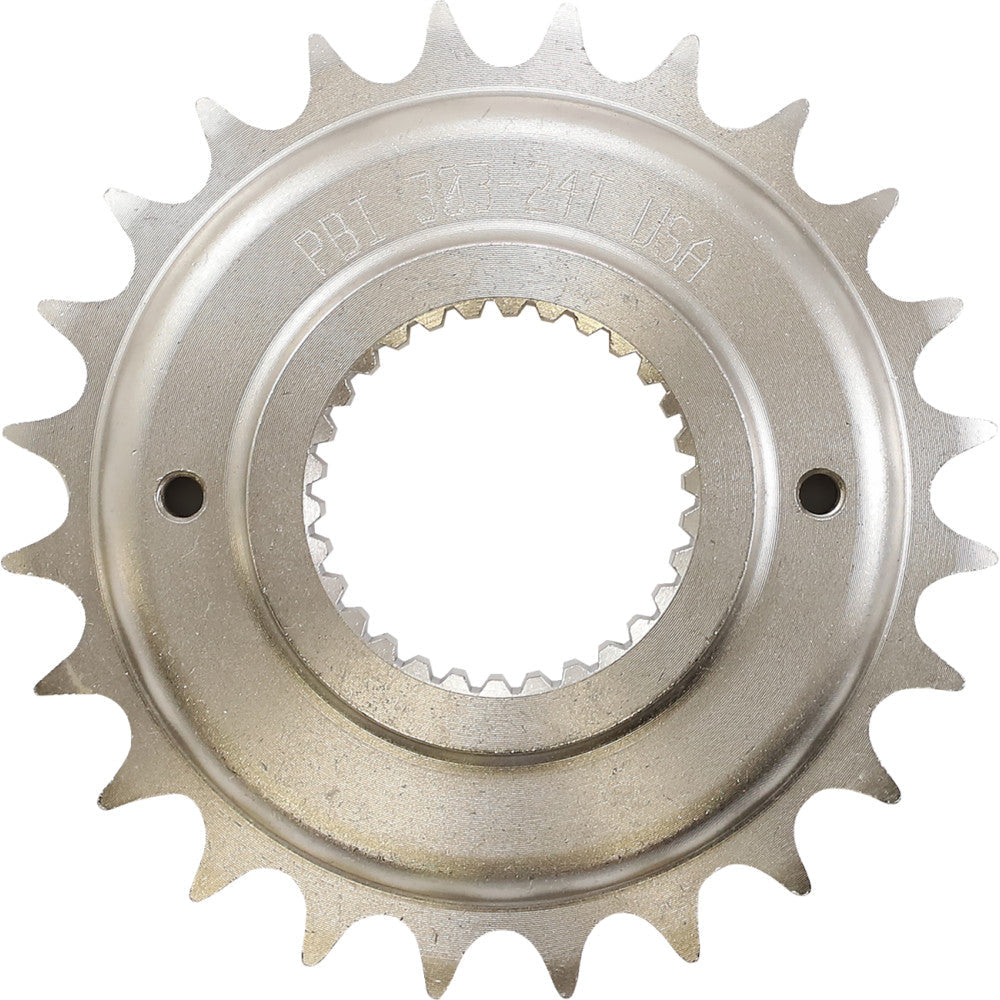

13-15 for Harley Breakout FXSB PBI Offset Transmission Sprocket 24-Tooth 303-24
13-15 for Harley Breakout FXSB PBI Offset Transmission Sprocket 24-Tooth 303-24

13-15 for Harley Breakout FXSB PBI Offset Transmission Sprocket 24-Tooth 303-24

PBI

$130.95

Quantity

Manufacturer: PBI
MPN: 303-24
Title: .500in Offset Transmission Sprocket

  • CNC-machined from a premium nickel, chromoly steel (8620), case-hardened and finished with an electroless nickel plating for corrosion/wear resistance and lubricity
  • Sprockets are drilled and tapped to accommodate late-model lock plate, PART #TPR 100, available separately
  • Will also fit 86-93 Big Twin models with use of OEM #33344-94 (spacer), OEM #12067A (seal) and OEM #11165 (O-ring)
  • Offset measurement is taken from the face that rests against the mainshaft bearing to the inside of the teeth for Total Offset description
  • For use with .530 pitch chain
  • Made in the U.S.A.

Important Notes

NOTESWill also fit 86-93 Big Twin models with use of OEM #33344-94 (spacer), OEM #12067A (seal) and OEM #11165 (O-ring)

Fitment Chart

YearMakeModelPositionNotes
2018Harley-DavidsonSoftail Deluxe FLDE--
2018Harley-DavidsonSoftail Fat Boy FLFB--
2018Harley-DavidsonSoftail Heritage Classic FLHC--
2018Harley-DavidsonSoftail Heritage Classic 114 FLHCS--
2018Harley-DavidsonSoftail Low Rider FXLR--
2018Harley-DavidsonSoftail Sport Glide FLSB--
2018Harley-DavidsonSoftail Breakout FXBR--
2018Harley-DavidsonSoftail Breakout 114 FXBRS--
2018Harley-DavidsonSoftail Fat Bob FXFB--
2018Harley-DavidsonSoftail Fat Bob 114 FXFBS--
2018Harley-DavidsonSoftail Fat Boy 114 FLFBS--
2018Harley-DavidsonSoftail Slim FLSL--
2018Harley-DavidsonSoftail Street Bob FXBB--
2016-2017Harley-DavidsonLow Rider S FXDLS--
2016-2017Harley-DavidsonCVO Pro Street Breakout FXSE--
2016-2017Harley-DavidsonFat Boy S FLSTFBS--
2016-2017Harley-DavidsonSoftail Slim S FLSS--
2014-2015Harley-DavidsonCVO Softail Deluxe FLSTNSE--
2013-2017Harley-DavidsonBreakout FXSB--
2013-2014Harley-DavidsonCVO Breakout FXSBSE--
2012-2017Harley-DavidsonSoftail Slim FLS--
2012-2016Harley-DavidsonSwitchback FLD--
2012Harley-DavidsonCVO Softail Convertible FLSTSE3--
2011-2013Harley-DavidsonBlackline FXS--
2011Harley-DavidsonCVO Softail Convertible FLSTSE2--
2010Harley-DavidsonCVO Softail Convertible FLSTSE--
2010Harley-DavidsonCVO Fat Bob FXDFSE2--
2009-2017Harley-DavidsonFat Boy Lo FLSTFB--
2009Harley-DavidsonCVO Softail Springer FXSTSSE3--
2009Harley-DavidsonCVO Fat Bob FXDFSE--
2008-2017Harley-DavidsonFat Bob FXDF--
2008-2011Harley-DavidsonSoftail Cross Bones FLSTSB--
2008Harley-DavidsonScreamin' Eagle Softail Springer FXSTSSE2--
2008Harley-DavidsonScreamin' Eagle Dyna FXDSE2--
2007-2017Harley-DavidsonSoftail Fat Boy EFI FLSTFI--
2007-2017Harley-DavidsonSoftail Heritage Classic EFI FLSTCI--
2007-2017Harley-DavidsonSoftail Deluxe EFI FLSTNI--
2007-2012Harley-DavidsonSoftail Standard EFI FXSTI--
2007-2011Harley-DavidsonSoftail Rocker C FXCWC--
2007-2010Harley-DavidsonSoftail Rocker FXCW--
2007-2010Harley-DavidsonSoftail Custom EFI FXSTC--
2007-2009, 2014-2017Harley-DavidsonLow Rider EFI FXDL--
2007-2009Harley-DavidsonSoftail Night Train EFI FXSTBI--
2007Harley-DavidsonSoftail Springer Classic EFI FLSTSCI--
2007Harley-DavidsonScreamin' Eagle Electra Glide Ultra Classic FLHTCUSE2--
2007Harley-DavidsonScreamin' Eagle Road King FLHRSE3--
2007Harley-DavidsonScreamin' Eagle Dyna FXDSE--
2007Harley-DavidsonScreamin' Eagle Softail Springer FXSTSSE--
2007Harley-DavidsonRoad King EFI FLHR--
2007Harley-DavidsonStreet Glide EFI FLHX--
2007Harley-DavidsonElectra Glide Standard EFI FLHTI--
2007Harley-DavidsonSoftail Deuce EFI FXSTDI--
2007Harley-DavidsonElectra Glide Police FLHTPI--
2007Harley-DavidsonRoad King Custom EFI FLHRS--
2007Harley-DavidsonRoad King Classic EFI FLHRC--
2007Harley-DavidsonElectra Glide Ultra Classic EFI FLHTCUI--
2007Harley-DavidsonRoad Glide EFI FLTR--
2007Harley-DavidsonElectra Glide Classic EFI FLHTCI--
2006-2017Harley-DavidsonStreet Bob FXDB--
2006-2014Harley-DavidsonSuper Glide Custom EFI FXDCI--
2006-2010Harley-DavidsonSuper Glide EFI FXDI--
2006-2008, 2010-2017Harley-DavidsonWide Glide EFI FXDWGI--
2006Harley-DavidsonSuper Glide FXD35--
2006Harley-DavidsonWide Glide FXDWG--
2006Harley-DavidsonSuper Glide FXD--
