00-03 for Harley FLHR/FXST/FLST DAKOTA Series Analog Gauge System MVX-02-KG-K
00-03 for Harley FLHR/FXST/FLST DAKOTA Series Analog Gauge System MVX-02-KG-K

00-03 for Harley FLHR/FXST/FLST DAKOTA Series Analog Gauge System MVX-02-KG-K

DAKOTA DIGITAL

$595.00

Quantity

Manufacturer: Dakota Digital
MPN: MVX-2002-KG-K
Title: MVX Series Analog Gauge Systems
Color: Black Gray Black

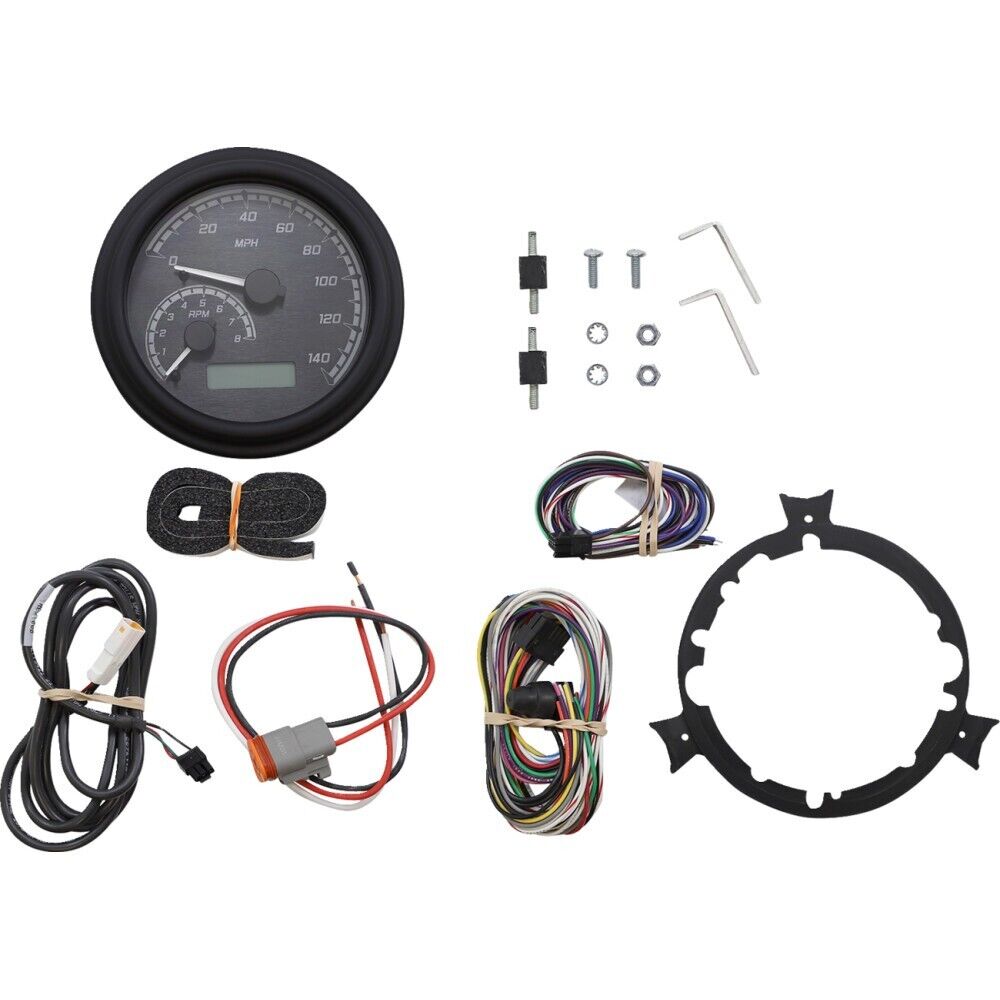

  • Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge
  • Feature seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white)
  • Four different face options available: black with red accents, black with gray accents, white with red accents and white with gray accents
  • 8000 rpm tachometer has adjustable shift point and can display in digital numeric readout
  • Resettable miles to service with a warning (user settable countdown) and hour meter
  • Clock function (12-hour format)
  • Voltage readout with low-voltage alert
  • Cylinder head temperature sensor (if bike is equipped with factory sender unit)
  • Oil pressure warning light (sold separately, PART #2212-0513 or DS-250019)
  • Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions
  • Security system indicator
  • Automatic turn signal cancelling compatible
  • Wait to start/check engine light function
  • Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4?- mile time and speed
  • Wiring installation is cut/splice; not a direct plug-in gauge
  • Case diameter measures 41/4??" and bezel diameter of 45/8??"
  • For 99-03 FLHR, 00-03 FXST/FLST AND FXDWG
  • Not direct plug in, must be hardwired
